SC1210-LD

Optimal performance for PV Panels and Batteries

10A Solar Charge Controller

PWM Series

KISAE Solar Charge Controllers provide maintenance-free protection for your batteries and solar panels in off-grid situations.

Features include:

  • PWM (Pulse Width Modulation) designs.
  • Regulated output to prevent batteries from overcharging.
  • Maintains batteries in charged state.
  • Load Disconnect feature protects batteries from being over-discharged.
  • LED digital displays
  • Temperature compensation

Connect With Us

Get Pluggin In

SC1210-LD Product Details

  • Overview
  • Specs
  • Downloads

Features And Benefits

  • PWM (Pulse Width Modulation) charge controllers to maximize power from solar panels.
  • LED status indicators for quick reference to Charger, Battery and Load status.
  • Handles up to 120 Watts of solar power.
  • Maintains 12 Volt batteries in a fully charged state.
  • 2 year warranty.

Dimensions (L x W x H):

SC1210-LD: 4.1” x 4.1“ 1.3” (104.5 x 104.3 x 33.7mm)

Weight:

SC1210-LD: 0.65 lbs. (0.3 Kg)

SOLAR CHARGE CONTROLLER SC1210-LD
DC INPUT (PV)
MAX. PV VOLTAGE 26V
MAX. PV CURRENT 10A
VOLTAGE ACROSS PV & BATTERY < 0.15V
DC OUTPUT (BATTERY)
BATTERY RATING 12V
BATTERY TYPE Sealed/Flooded
MAX. CHARGE CURRENT 10A
CHARGE VOLTAGE RANGE 14.2 – 14.6V
FLOAT VOLTAGE RANGE 13.4 – 13.8V
PARASITIC CURRENT <10mA
DC OUTPUT (TO LOAD)
LOAD CURRENT (CONTINUOUS) 10A
PROTECTION AND FEATURES
PV REVERSE POLARITY Protected
BATTERY OVERCHARGE Yes
LOAD OVER-DISCHARGE VOLTAGE < 11.5V
LOAD RECONNECTED VOLTAGE 12.6V
BUILT-IN TEMPERATURE SENSOR Yes, temperature compensation on charging voltage
ENCLOSURE
WEIGHT 0.65 lbs
DIMENSION 4.1 x 4.1 x 1.3″

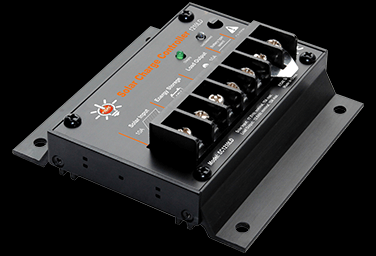

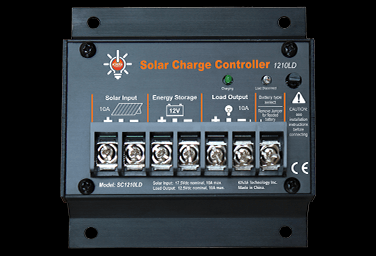

Product Gallery
