AC2450

A multi-stage battery charger that charges up to three battery banks simultaneously with priority setting.

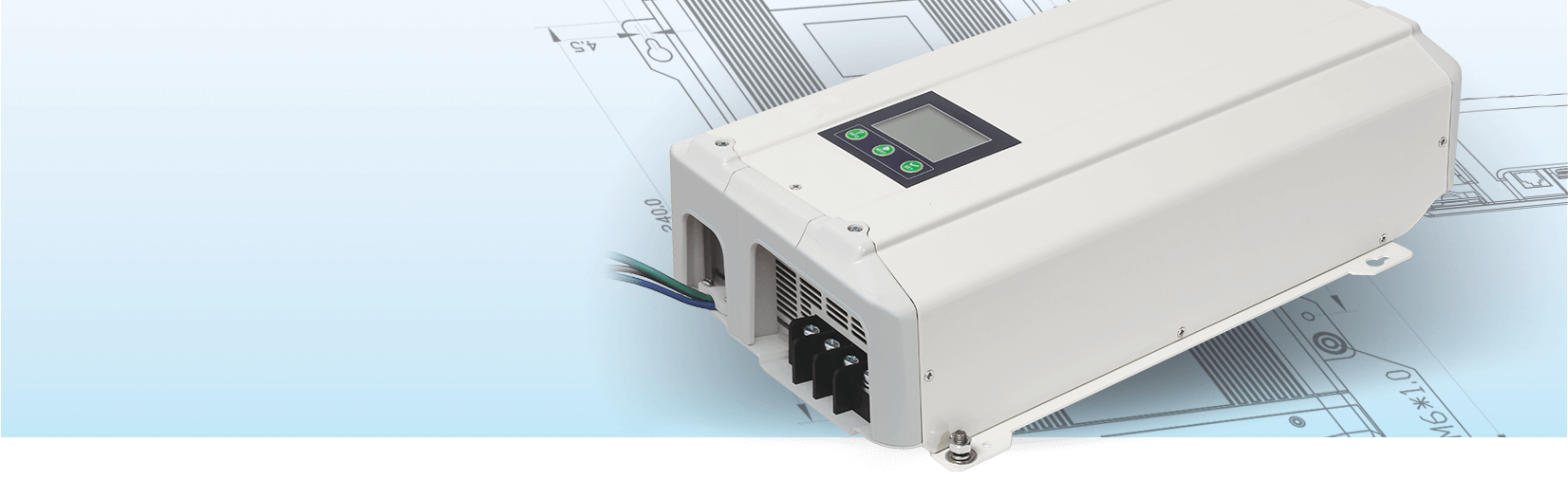

50A 24V AC Battery Charger

ABSO Product Line

KISAE’s Abso Chargers are smart, multi-stage 3-bank battery chargers that use advanced algorithms to rapidly and safely replenish large capacity AGM, Gel, Flooded and Lithium batteries to peak efficiency while improving battery life.

Features include:

  • Multi-stage charging.
  • 3-Bank charging capability with user selectable priority setting.
  • Safety tested & Regulatory Approved to cETLus standards for North America (UL & CSA).
  • Safety tested & Regulatory Approved to CE standards for UK, EU, and AU/NZ.
  • Part of KISAE’s impressive AC battery charger line.

Connect With Us

Get Pluggin In

AC2450 Product Details

  • Overview
  • Specs

Features And Benefits

  • Multi-stage battery charger that ensures batteries are charged to battery manufacturer’s recommendations.
  • Variable battery type settings including Gel, Flooded, AGM, and Lithium.
  • Charges up to three battery banks simultaneously.
  • Priority bank charging capability ensures main battery charges first.
  • Silent mode offers quiet operation near sleeping quarters.
  • Simple to install.
  • Remote ON/OFF panel (accessory sold separately).
  • Compact size for easy storage.

Dimensions (L x W x H):

AC 2450: 13.9” x 8.1” x 3.7” (295 x 206 x 86mm)

Weight:

AC 2450: 7.7 lbs. / 3.5 Kg

Output Voltage 24V
Output Current (Maximum) 50A
Selectable Battery Type Gel, AGM, Flooded, Lithium, Program
Charge 38.4-31.0V
Float 26.8-27.6V
Equalize 32.0V
Charging Control Three/Two Stages Program
DC Output Bank Three
Parasitic Current <2mA
Voltage (nominal) 120,230,240VAC
Operation Range 90-265VAC
Frequency Range 47-63Hz
Power Consumption (full load) 1800W
Power Factor Correction Yes
Reverse Battery Yes
Cooling Forced Ventilation
Output Short Circuit Yes
Ingress Projection IP 32
Indicator LCD with back lighting
Digital Display (LED) Voltage, Current, Status and Error Code
AC Input Connection Hardwire / AC Input Cord (Schuko, UK, Australia plug)
DC Output Connection Heavy Duty Studs
Weight 14lbs/6.4kg
Dimensions 9.3×16.7×4″
236x425x102.7mm
Remote Panel For viewing unit status, adjusting settings, and for connecting the chargers in parallel
Battery Temp. Sensor For battery charging voltage adjustment
