DMT12100
A versatile DC-DC battery charger for charging batteries from either PV solar or the engine/alternator battery.
100A DC Battery Charger
DC to DC Charger Series
These unique DC – DC chargers provide the ability to charge batteries from two independent DC input sources: either via a PV solar panel(s) when stationary or from the engine/alternator while driving. Ideal for charging batteries in Boats, RVs, Van Conversions and Trucks.
Features include:
- DUAL DC INPUTS: MPPT Solar input or Alternator input.
- Multi-stage charging ensures batteries are charged to battery manufacturer’s recommendations.
- Microprocessor controlled charging algorithm (Bulk, Absorption, Float) for Gel, Flooded, AGM and Lithium batteries
- Solar Input to trickle charge Alternator Input battery.
- MPPT solar regulator provides maximum power fromsolar panels to battery.
Connect With Us
Get Plugged In
DMT12100 Product Details
Features And Benefits
- DC to DC Battery Chargers are capable of charging your house battery from either PV solar or the engine/alternator battery.
- 100A maximum output to battery.
- Ideal for charging batteries in Boats, RVs, and Trucks when stationery or on the move.
- Micro-processor controlled multi-stage charging algorithms (Bulk, Absorption, Float) for Gel, Lithium, AGM, and Flooded batteries (with equalization for Flooded batteries).
- Silent mode for quiet operation.
- MPPT solar regulator providing maximum power from PV solar panels to the battery.
- Includes fully programmable LCD display panel.
Dimensions (L x W x H):
DMT12100: 14.0“ x 8.1″ x 3.8” (356mm x 205mm x 97mm)
Weight:
DMT12100: 7.1 lbs. / 3.23 Kg
Product Gallery
DMT12100
3/4 Top view

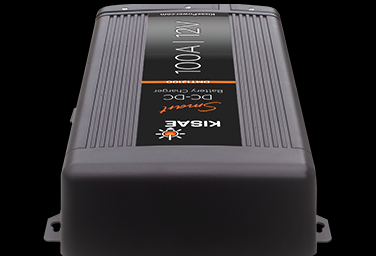

DMT12100
Top Bezel View

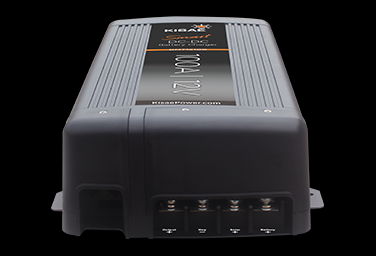

DMT12100
Bottom Connector View

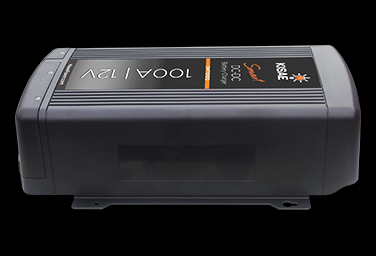

DMT12100
Right Side View

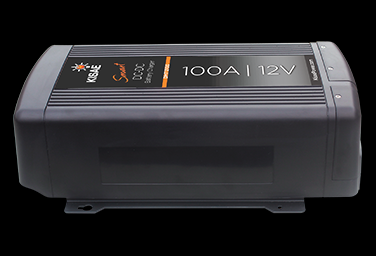

DMT12100
Left Side View

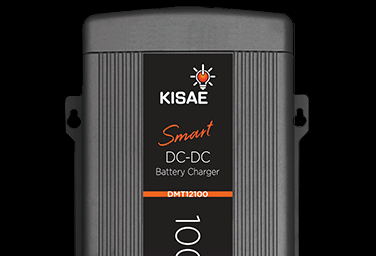

DMT12100
Face View
