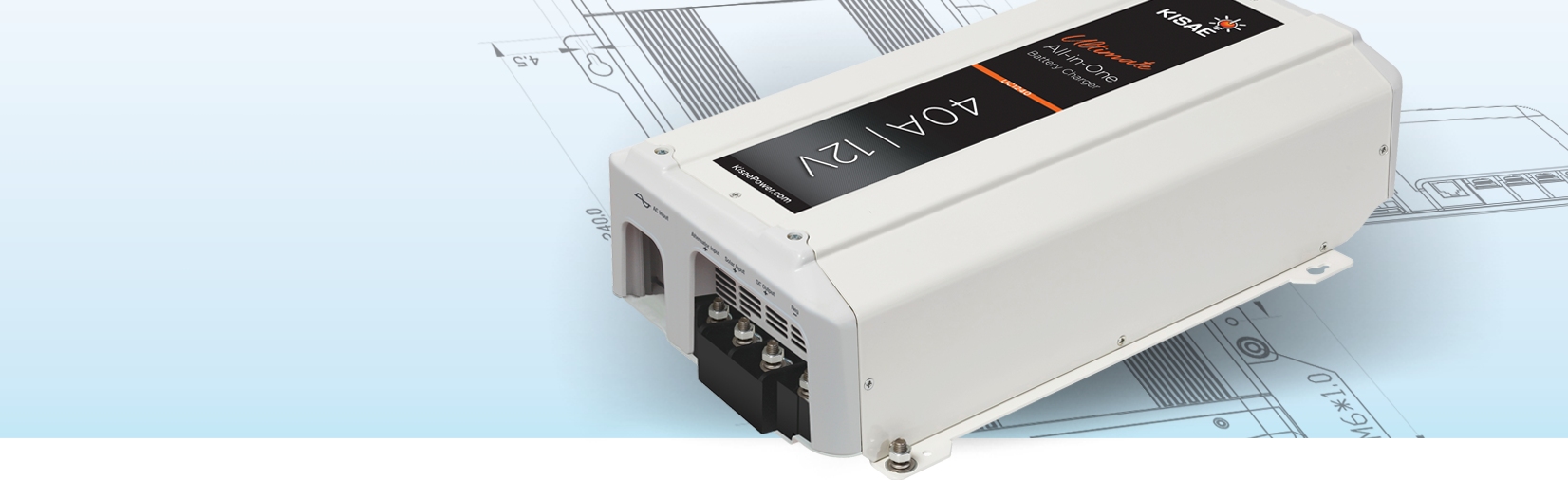

UC1240
An all-in-one battery charger that accepts a
variety of input sources, including:
AC, DC, and PV solar.
An all-in-one battery charger that accepts a
variety of input sources, including:
AC, DC, and PV solar.
KISAE’s UC1240 is the ultimate all-in-one battery charger. Able to draw power from a variety of inputs sources to charge your house battery, these smart multi-stage chargers use advanced algorithms to rapidly and safely replenish large capacity Gel, AGM, Lithium and Flooded batteries to peak performance from your choice of input sources.
Features include:
Features And Benefits
Dimensions (L x W x H):
UC 1240: 17.9” x 9.4” x 4.1” (455 x 238 x 104mm)
Weight:
UC 1240: 7.6 lbs. / 3.45 Kg
| BATTERY CHARGER | UC 1240 |
| DC CONTROLLER OUTPUT | |
| OUTPUT CURRENT (Maximum) | 80A Total (40A max from AC input and 40A max from Solar or Alternator input) |
| DC OUTPUT VOLTAGE RANGE: | |
| CHARGE | 13.5 – 15.5V |
| FLOAT | 13.0 – 13.8V |
| EQUALIZE (FLOODED BATTERY ONLY) | 15.5V |
| CHARGING CONTROL | 5 Stages (Test/Bulk/Absorption/Float/Recharge) |
| DC OUTPUT BANK | One |
| SELECTABLE BATTERY TYPE | Gel, AGM, Flooded (w/ Eq.), Lithium, Program, Fixed Power Supply |
| PARASITIC CURRENT | < 2 mA |
| EFFICIENCY | > 90% |
| DC INPUT (Battery/Alternator) | |
| DC INPUT RANGE | 10.5 – 32Vdc |
| AC INPUT NOMINAL OPERATION | 13.2V for 12V input charging system 26.4V for 24V input charging system |
| 26.4V for 24V input charging system | |
| ENGINE START CONTROL: ON | DC input from Battery/Alternator |
| ENGINE START CONTROL: OFF | DC input from PV input (if applicable) |
| INPUT CURRENT | 50A max |
| DC INPUT (PV) | |
| MAX. PV OPEN CIRCUIT VOLTAGE | 50 Vdc |
| DC INPUT NOMINAL OPERATION | 17.5Vdc for 12V PV panels connected in parallel 35Vdc for 12V PV panels connected in series |
| 35Vdc for 12V PV panels connected in series | |
| MPPT TRACKING EFFICIENCY | > 98% |
| AC INPUT (Utility/AC Generator) | |
| AC INPUT VOLTAGE (Nominal) | 100, 120, 220, 230, 240VAC |
| AC INPUT OPERATIONG RANGE | 90 – 265VAC |
| AC INPUT FREQUENCY RANGE | 47 – 63Hz |
| DC OUTPUT PROTECTION AND FEATURES | |
| REVERSE BATTERY | Yes (shutdown), Auto Reset |
| DC OUTPUT SHORT CIRCUIT | Yes (shutdown), Auto Reset |
| OVER CHARGE | Yes (shutdown), Auto Reset |
| OVER TEMPERATURE | Yes (de-rated and shutdown) |
| COOLING | Forced Air Ventilation |
| TEMPERATURE SETTING | High, Normal, Low (no battery temp. sensor connected) |
| BATTERY TEMPERATURE SENSOR PORT | RJ12 (optional Battery Temperature Sensor use) |
| DIGITAL DISPLAY PORT | RJ12 (Digital Display Use) |
| DISPLAY PANEL | |
| DIGITAL DISPLAY | LED display with back lighting |
| (Voltage, Current, Status and Error Code) | |
| LED INDICATORS | Flashing green LED: Charging in progress |
| Solid green LED: Fully Charged | |
| Solid red LED: Fault | |
| ENCLOSURE | |
| DC INPUT CONNECTION | Hardwire |
| DC OUTPUT CONNECTION | Hardwire |
| SIZE | |
| NET WEIGHT | 7.6 lbs / 3.45 Kg |
| DIMENSION (LxWxH) | 17.9″ x 9.4″ x 4.1″ (455mm x 238mm x 104mm |
| REGULATORY COMPLIANCE | |
| MARKINGS | cETLus / CE, e-Mark |
| CONFORMANCE | UL & CSA Standards / CE LVD |
| EMI/EMC | FCC Part 15 Class B / CE EMC Tested to E9-09 |
| ACCESSORIES | (OPTIONAL) |
| BATTERY TEMPERATURE SENSOR | BTS 10K (for battery charging voltage adjustment) |
