Power
It is an indispensable part of our daily lives. We start each day with it and have built our lives around it. Indeed, whether awake or asleep we depend on power being there for us 24/7. But when that dependency is interrupted we want accessibility to it… NOW.
Like most people, we get frustrated when we’re far away from home – on the road, the water, or at the campsite – and can’t run the items we want when we need them most. In today’s mobile world, connecting to the power grid isn’t always possible. Access to power is always the weak point.
Enter KISAE.
We bridged the power gap
with our new premium performance
high frequency inverter-charger
For your RV
Long-haul Truck
Utility Service Vehicle
Van Conversion
or Boat
Power plus Power

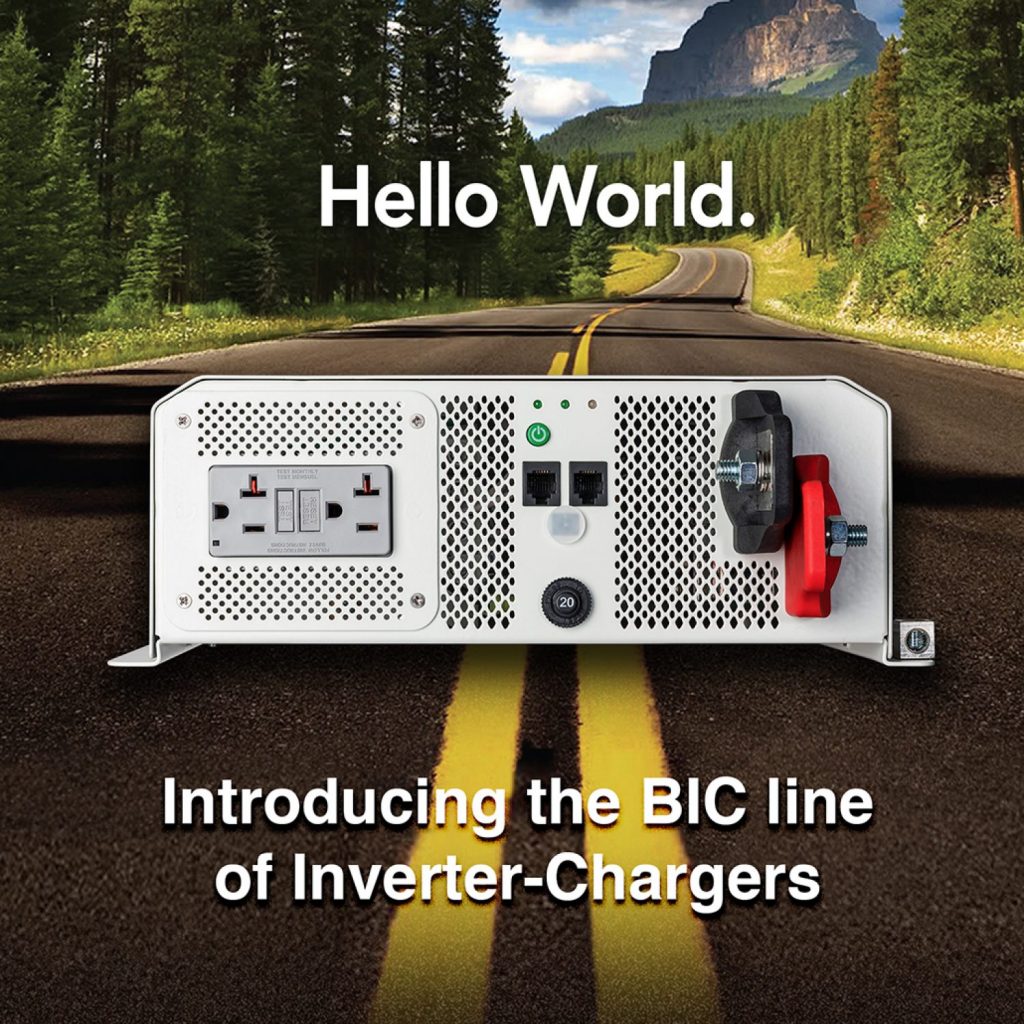

BIC inverter-chargers are premium performance, high-frequency power products, coupling a high wattage power inverter with a high amperage smart battery charger. Input voltage versions are available in 12VDC for 12 volt batteries or 24VDC for 24 volt batteries; output is either 120 volt AC or 230 volt AC.
Features include:
High wattage power inverter
True sine wave output
120VAC output versions available
230VAC output versions available
High amperage battery charger
Micro-processor controlled
Multi-stage charging algorithm
Charges a variety of battery types
Lightweight compact design
Built-in CAN BUS communication
Built-in ignition control to minimize battery drain
Accepts AC or DC input sources

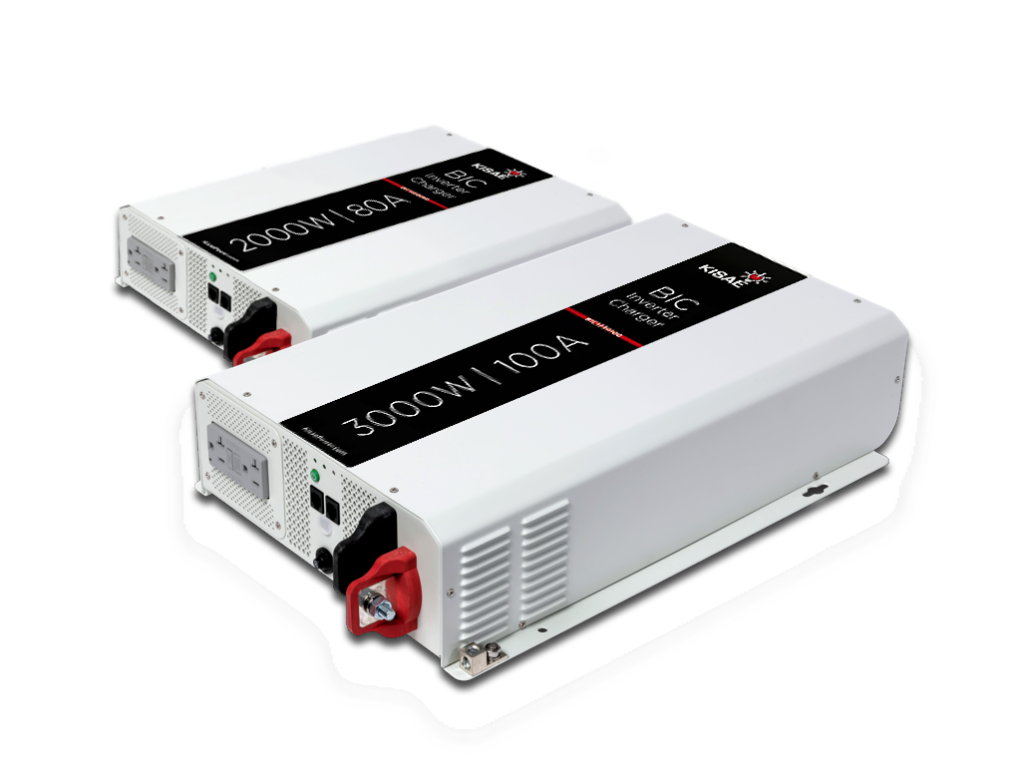

BIC1230100
BIC1230100i
12VDC
12VDC
100A
3000 watt true/pure sine wave power inverter
3000 watt true/pure sine wave power inverter
Micro-processor controlled, multi-stage battery charger
120VAC – 60Hz
230VAC – 50Hz
BIC1220080
BIC1220080i
12VDC
12VDC
80A
2000 watt true/pure sine wave power inverter
2000 watt true/pure sine wave power inverter
Micro-processor controlled, multi-stage battery charger
120VAC – 60Hz
230VAC – 50Hz
Automatic Transfer Switch
An integrated 30A transfer switch offers the ability to automatically switch between utility/shore power and inverter/battery power in less than 30 milliseconds, a transfer that occurs faster than the human eye can blink, so most loads won’t even notice the switchover and will continue to run without interruption.
Regulatory Approval
KISAE BIC inverter-chargers have been tested and approved to meet cETLus regulatory standards for North America, and CE standards for Europe.
Available Output Options
All BIC inverter-charger models include a country specific AC outlet and have an optional hardwire capability which allows the user to connect the unit directly into their boat, truck, RV or caravan’s electrical wiring using the unit’s easy-access hardwire compartment.

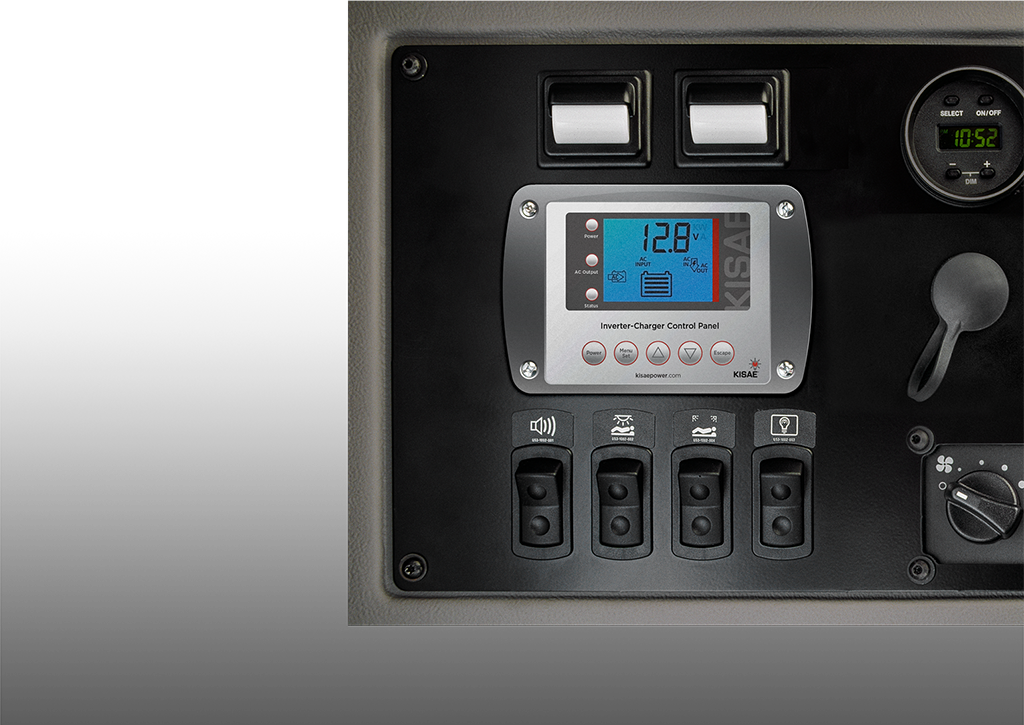

Command and Control
All BIC inverter-charger models come packaged with its own digital remote display panel for easy-touch system monitoring and control placed in a location where it’s most convenient for the user. Offers numerous programmable settings for various battery inputs and protection features.
High Surge Output
All BIC inverter-charger models come packaged with its own digital remote display panel for easy-touch system monitoring and control placed in a location where it’s most convenient for the user. Offers numerous programmable settings for various battery inputs and protection features.
Twice the continuous rated power
Built for high start-up surge applications:
Microwave ovens
Televisions
Toasters
Toaster ovens
Stereo Amplifiers
Laser Printers
Electric Frying Pans
Computers w/ hard drives
Monitors
Electric Motors
Compressors
Water Pumps
Kettles
Refrigerators
Electric Grills
Hair Dryers
Power Tools
Satellite Receivers
The Perfect Balance of Power across the board

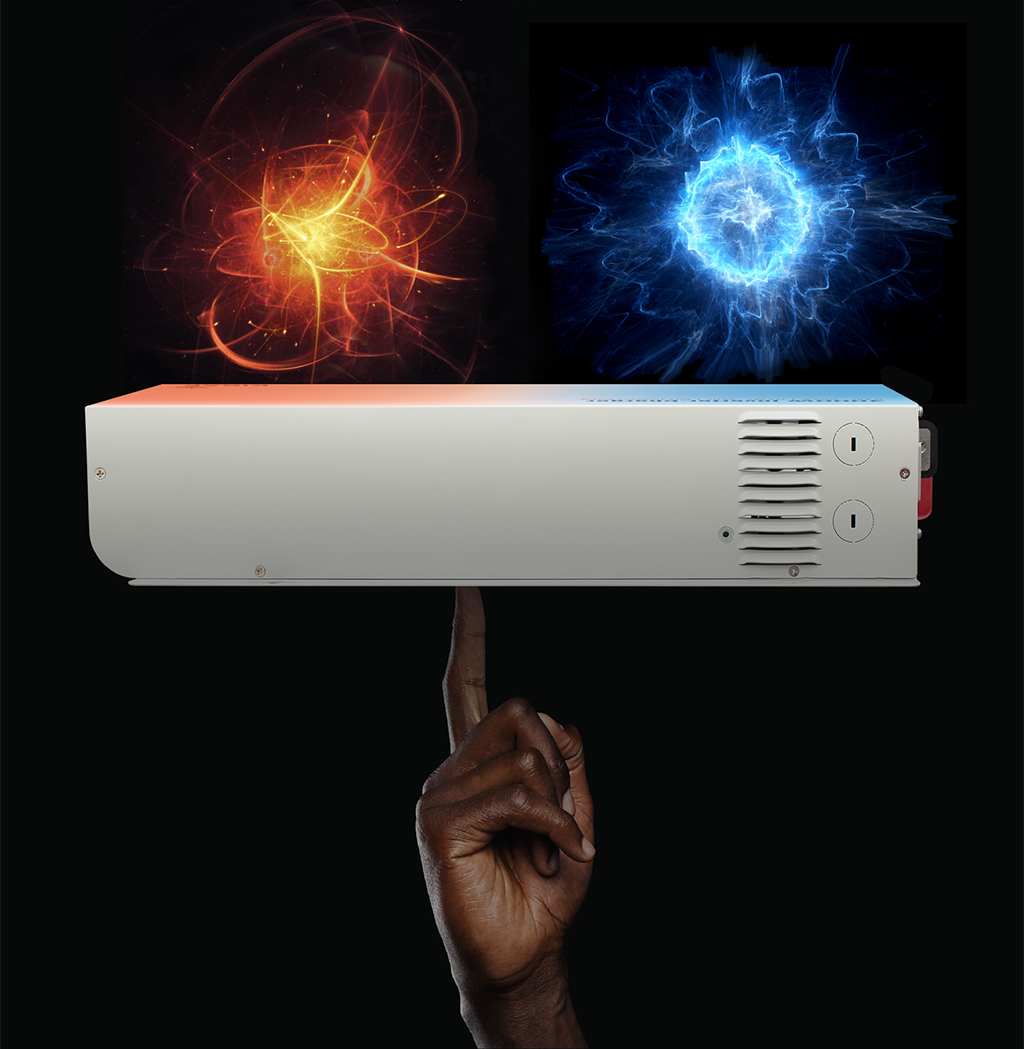

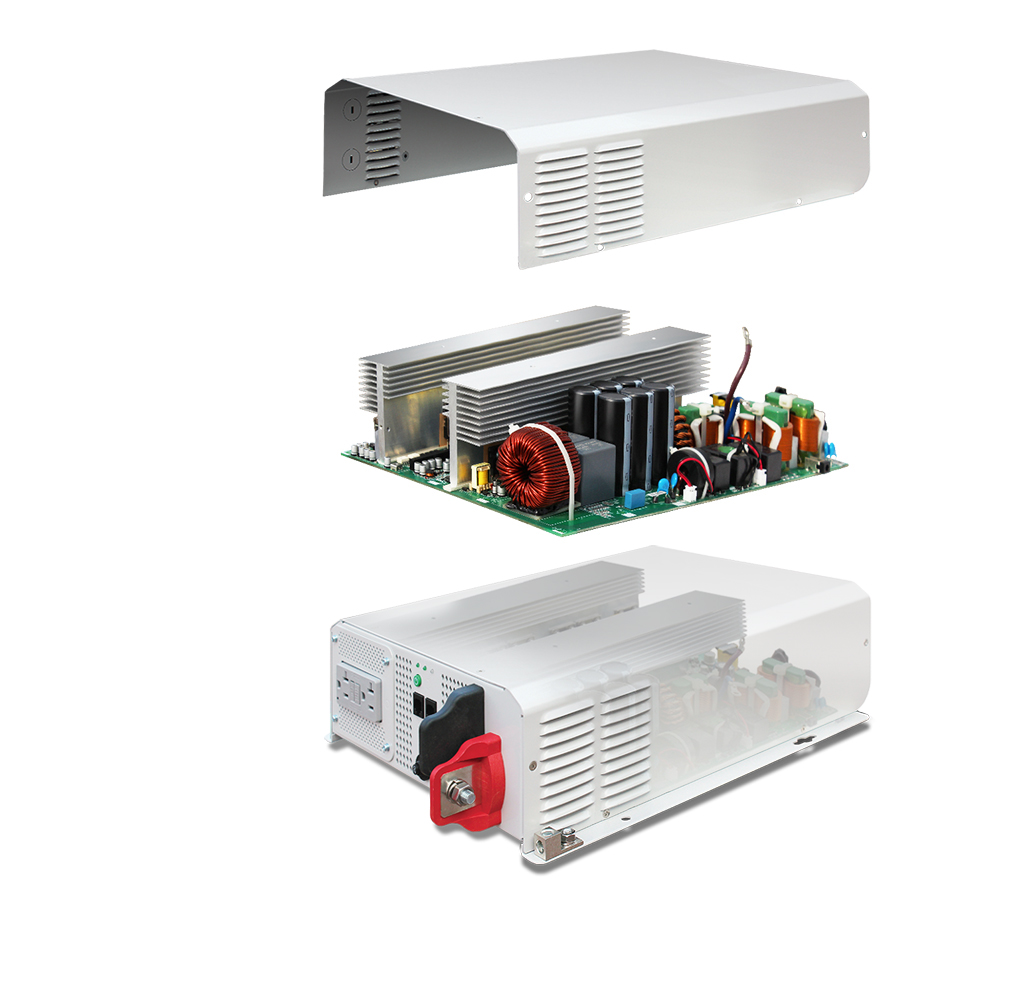

BIC premium performance, bi-directional inverter-chargers are engineered to go all out. They offer dual purpose functionality across the board, delivering high wattage true sinewave AC output and high amperage multi-stage charging from one circuit board. That results a more efficient power product with a substantially lighter weight and smaller footprint, making it able to fit into tight spaces where size is a primary concern.
Dual exhaust fans work in concert with the positive venting to facilitate airflow across internal circuitry and actively affect cooling and heat dissipation.
CAN BUS Enabled
All BIC inverter-chargers have a built-in CAN BUS interface module which allows the unit to communicate with micro-controllers resident within other onboard equipment.
A Simple Design
Every KISAE product is built on the design principle of Simplicity, a directive that governs all we do as an alternative energy company. This ideal takes form in the BIC Inverter-Chargers as a rugged power product that is lighter in weight, thinner in profile, and smaller in footprint, and yet performs its workhorse functions –– flawlessly delivering high wattage output to loads and high amperage current to batteries again and again.
