IC244090i

The perfect balance of power, combining a pure sine wave inverter with a smart battery charger

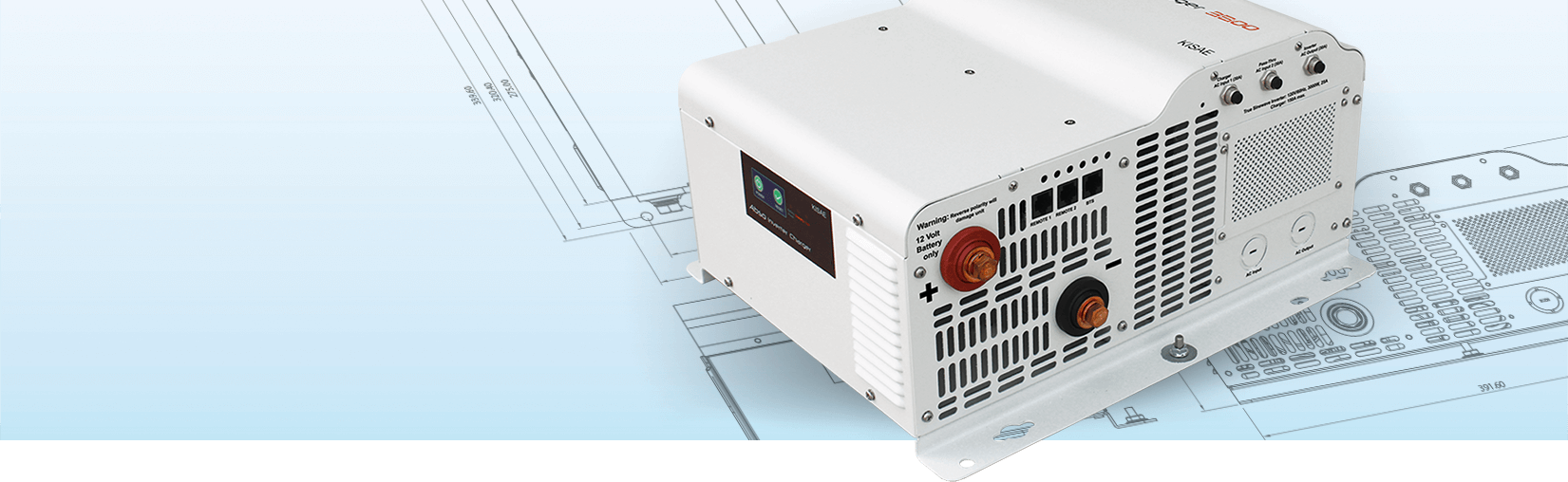

3500W / 90A Inverter-Charger

Low Frequency Series

Combines KISAE’s renowned true sinewave inverter technology with its smart battery charger technology, resulting in the ability to run household appliances, electronics and power tools in your truck, boat or RV and properly recharge your batteries.

Features include:

  • 24 volt DC input.
  • True sinewave output to run motor loads and sensitive electronics without hum or buzz.
  • Multi-stage charger to charge your deep-cycle batteries quickly and efficiently to manufacturer’s recommendations.
  • Integrated transfer switch to switch seamlessly from shore power to battery power.
  • Ideal for running appliances & consumer electronics the way they were designed to be.

Connect With Us

Get Pluggin In

IC244090i Product Details

  • Overview
  • Specs
  • Downloads

Features And Benefits

  • Low frequency design with high surge capability to start demanding loads
  • True sinewave output will run heavy-duty motor loads and  entertainment systems flawlessly
  • Low battery shutdown to prevent total battery discharge
  • System remote panel (included) provides vital system information
  • Over temperature shutdown
  • Mounting brackets and high quality DC connectors for simple installation.
  • Approved to UL, CSA, and European regulatory standards.
  • Silent operation.
  • Wall-mountable.

Dimensions (L x W x H):

IC244090i: 15.4” x 13.4” x 7.8” (391 x 340 x 198mm)

Weight:

IC244090i: 51.7 lbs. / 23.5 Kg

INVERTER / CHARGER (LOW FREQUENCY) IC 244090i
AC OUTPUT
AC OUTPUT POWER (CONTINUOUS) 3500W
AC OUTPUT POWER (5 SECONDS) 7000W
AC OUTPUT VOLTAGE / FREQUENCY 230 VAC / 50 Hz
AC OUTPUT CURRENT 15.2A
AC OUTPUT WAVEFORM True Sinewave (< 3% THD)
PEAK EFFICIENCY 90%
DC INPUT
VOLTAGE (NOMINAL) 25.0Vdc
OPERATION RANGE 21.0 – 33.0Vdc
INVERTER STANDBY CURRENT < 2.5A
PROTECTION
INPUT UNDERVOLTAGE SHUTDOWN 21.0Vdc
INVERTER OVERVOLTAGE SHUTDOWN 33.0Vdc
DISPLAY PANEL
INDICATOR (LED) Battery Power, Charging, Fault
DIGITAL DISPLAY (LCD) Input Voltage, Output Power, Error Message
BATTERY CHARGER
CHARGER VOLTAGE RANGE 28.4 – 32.0Vdc
FLOAT VOLTAGE RANGE 21.0 – 33.0Vdc
CHARGER CURRENT (MAXIMUM) 90A
CHARGER BATTERY TYPE Gel, Flooded, AGM
AC INPUT VOLTAGE/FREQUENCY 230 VAC / 50 Hz
AC TRANSFER SWITCH
TRANSFER TIME < 20ms
TRANSFER RELAY RATING 20A
REGULATORY COMPLIANCE
MARKINGS CE
CONFORMANCE LVD, EMC
ENCLOSURE
WEIGHT 29.3 kg
DIMENSION 392x340x197mm
