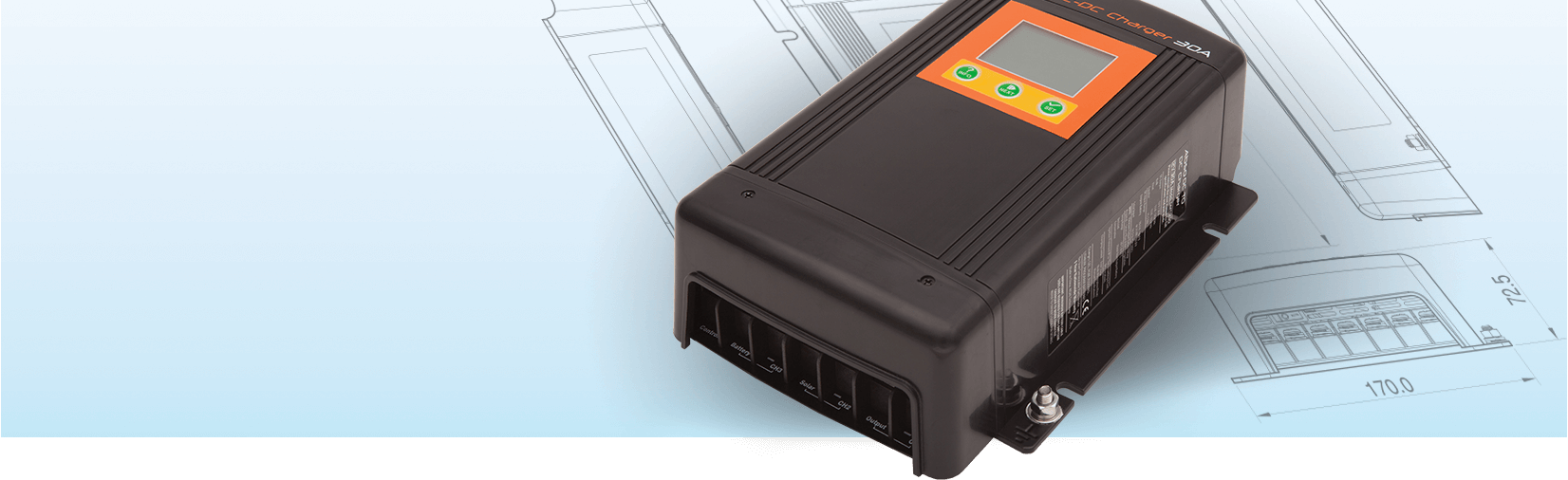

DMT2430

Designed for charging batteries from PV solar or the engine battery when AC household power is unavailable.

30A DC Battery Charger

Abso DC to DC Charger Series

The DMT2430 DC – DC chargers are the smart alternative for leisure or commercial use. They provide the ability to charge batteries from two input sources; either via a PV solar panel(s) when stationary or via from the engine/alternator while driving.

Features include:

  • Dual Input Capability: MPPT solar input and household battery.
  • Multi-stage battery charger ensures that your batteries are charged the way battery manufacturers recommend.
  • Small footprint with extremely compact design.
  • Saves money by maximizing battery life.

Connect With Us

Get Pluggin In

DMT2430 Product Details

  • Overview
  • Specs
  • Downloads

Features And Benefits

  • DC to DC Battery Charger.
  • Microprocessor controlled multi-stage charging algorithms (bulk, absorption, float) for gel, flooded and AGM batteries and equalization for flooded batteries.
  • MPPT solar regulator allows you to provide maximum power from PV solar panels to the battery.
  • Silent mode for quiet operation.
  • Mounting brackets and simple design make for effortless installation.
  • Compact size for easy storage.

Dimensions (L x W x H):

DMT2430: 9.5“ x 6.7 x 2.9” (243.2mm x 170mm x 72.5mm)

Weight:

DMT2430: 4.1 lbs. / 1.85 Kg

ABSO DC – DC BATTERY CHARGERS DC CONTROLLER OUTPUT: DMT 2430
DC CONTROLLER OUTPUT
OUTPUT CURRENT (MAXIMUM) 30A
OUTPUT VOLTAGE RANGE
CHARGE 27.0 – 31.0V
FLOAT 26.0 – 27.6V for 12V Battery
EQUALIZE 31.0 V
CHARGING CONTROL Five Stages (Test/Bulk/Absorption/Float/Recharge)
Four Stages (Test/Bulk/Absorption/Recharge)
Constant Power Supply (Program Setting)
DC OUTPUT BANK One
SELECTABLE BATTERY TYPE Gel, AGM, Flooded, Lithium, Program
PARASITIC CURRENT < 10 uA
EFFICIENCY > 90%
DC INPUT (BATTERY/ALTERNATOR):
DC INPUT RANGE 10.5 – 32Vdc
DC INPUT NOMINAL OPERATION 12.8V for 12Vcharging system
25.6V for 24V charging system
ENGINE START CONTROL: ON DC Input from Battery/Alternator
ENGINE START CONTROL: OFF DC Input from PV Input (if available)
MAXIMUM INPUT CURRENT: 30A
DC INPUT (PV INPUT)
DC INPUT RANGE 10 – 50Vdc
DC INPUT NOMINAL OPERATION 17.5Vdc for 12V PV panels connected in parallel
35.0Vdc for Dual 12V PV panel connected in series
MPPT TRACKING EFFICIENCY >98% (Target)
DC OUTPUT PROTECTION AND FEATURES:
REVERSE BATTERY Yes (shutdown), Auto Reset
DC OUTPUT SHORT CIRCUIT Yes (shutdown), Auto Reset
OVER CHARGE Yes (shutdown), Auto Reset
OVER TEMPERATURE Yes (de-rated and shutdown)
DC FUSE 2*30A, 32V
COOLING Force Air Ventilation
TEMPERATURE SETTING Hot, Nominal, Cold (no sensor connected)
BATTERY TEMPERATURE SENSOR PORT RJ12 (optional battery temperature sensor use)
DIGITAL DISPLAY PORT RJ12 (optional display panel use)
DISPLAY (CODES)
INDICATOR ON UNIT Flashing Green LED: Charging in process
Solid green LED: Fully Charged
BUILT-IN DISPLAY OR THROUGH RJ12 PORT LED Display with back lighting
Charging status, Battery Voltage
WARNING AND FAULT CODE On unit: Fault LED (red)
Digital Display: A01, E01-09
ENCLOSURE
DC INPUT CONNECTION Hardwire
DC OUTPUT CONNECTION Hardwire
SIZE
DIMENSIONS 9.5“ × 6.7” × 2.9” (243.2mm x 170mm x 72.5mm)
NET WEIGHT 4.1 lbs. / 1.85 Kg
DC OUTPUT CONNECTION
POWER CONNECTION Heavy Duty Connector
ACCESSORY (OPTIONAL)
DC-DC REMOTE DISPLAY DMT RM01 (For viewing unit status, adjusting settings)
BATTERY TEMPERATURE SENSOR BTS 10K (for battery charging voltage adjustment)
REGULATORY COMPLIANCE
MARKINGS cETLus
CONFORMANCE UL & CSA standards
EMI/EMC FCC Part 15 Class B
12 VOLT MODELS ALSO AVAILABLE DMT1230 and DMT1250
Model DMT-2430

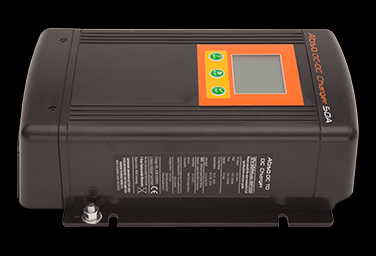

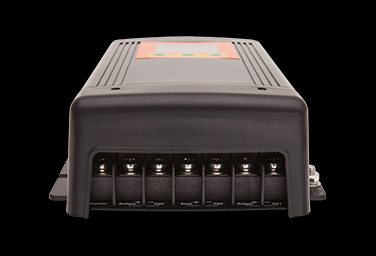

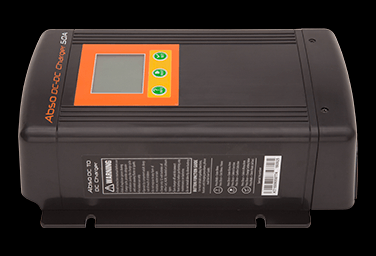

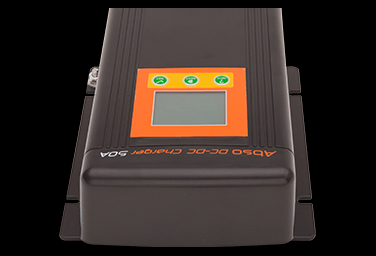

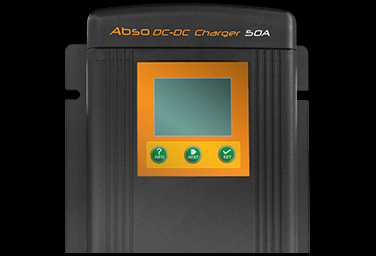

Product Gallery
